TATA Ace

TATA offers 10 variants for TATA Ace

₹4 Lakh*

Available Options

Key Features

Horse Power 22.21 22.21
Wheel Drive 4×2 4×2
Gear Box No GBS 65- 5/6.31
Clutch No Single-plate, dry-friction diaphragm type
Lifting Capacity 710 kg 710 kg
Overall Length Mm 2200 2200
Overall Width Mm 1490 1490
Wheelbase Mm 2100 2100

TATA Ace Overview

Tata Ace Trucks  – Price, Variants, and Specifications in India

The Tata Ace series has been the most trusted name in India’s small commercial vehicle segment for nearly two decades. Popularly known as “Chhota Hathi”, Tata Ace trucks are known for their durab...

TATA Ace VARIANTS

Variant Name Price
Tata Ace Gold ₹4 Lakh

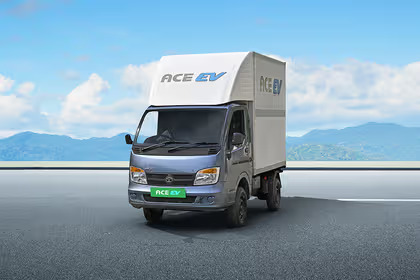

Tata Ace EV ₹11 Lakh
Tata Ace Pro Bi-Fuel ₹5 Lakh
Tata Ace HT+ ₹7 Lakh
Tata Ace EV 1000 ₹11 Lakh
Tata Ace Pro Ev ₹6 Lakh
Tata Ace Pro ₹3 Lakh
Tata ACE CNG 2.0(Bi-Fuel) ₹6 Lakh
Tata Ace Diesel ₹7 Lakh
Tata Ace Flex Fuel ₹5 Lakh

TATA Ace SPECIFICATIONS

Rear Leaf Spring
Battery Type Lead Acid
Fuel Type Petrol
Horse Power Hp 22.21
Torque Nm Torque55 Nm
Clutch Type Single-plate, dry-friction diaphragm type
Engine Rated Rpm 4000 RPM
Transmission Type Manual
Engine Capacity Cc 694
Gearbox GBS 65- 5/6.31
Number Of Tyre 4
Front Tyre 145 R12
Rear Tyre 145 R12
Front Overhang Mm 930 mm
Seating Layout 1+1
Engine Location Front
Body Option Load Body
Chassis Type Ladder Frame
Seating Capacity 2
Fuel Tank Litres 30
Front Brakes Drum Brakes
Rear Brakes Drum Brakes
Reverse Speed Kmph 70 km/h
Forward Speed Kmph 70 km/h
Alternator 12V
Fuel Pump MPFI
Air Filter Dry Type
Cooling Water Cooled
Battery 12V
Rpm 4000 RPM
Warranty 2 Years / 72,000 km
Additional Features High-strength chassis, wider load body, comfortable cabin
Accessories Mud flaps, floor mat, tool kit, jack and wheel spanner
Range 450 km
Gross Vehicle Weight 1615 kg
Power Peak 30 HP
Tyres 145 R12, 12 PR
Head Lights Halogen
Emission Free No
Regenerative Braking No
Vehicle Tracking System Available
Water And Dust Proof Battery Ip67 No
Maximum Speed 70 km/h
Certified Payload 710 kg
Cabin Type Day Cabin
Track Width 1330 mm
Gradeability 28% (approx.)
Turning Radius 4.3 m
Steering System Manual Rack & Pinion
Ground Clearance 160 mm
Brake Type Hydraulic
Parking Mechanical Hand Brake
